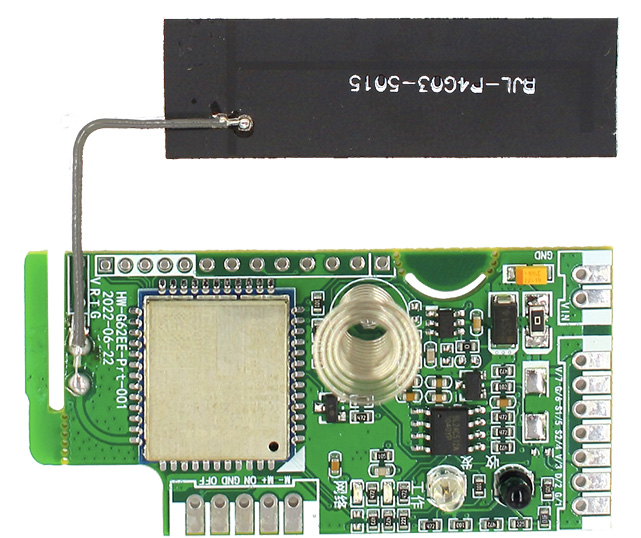

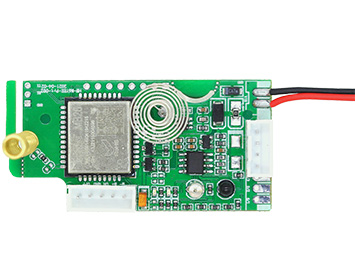

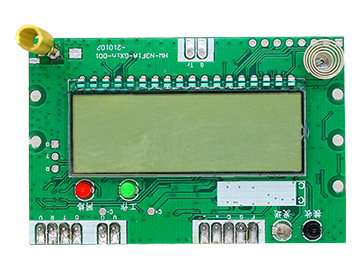

IoT Smart Meter Module is a high-efficiency, intelligent IoT solution designed for energy management, industrial automation, and smart city applications. It integrates high-precision sensing technology, wireless communication, and cloud-based data analytics to enable real-time device monitoring, resource optimization, and cost reduction.
1.Multi-Scenario Data Collection:
High-precision measurement of voltage, current, temperature, humidity, pressure, and more. Compatible with electricity, water, gas meters, and other utility devices.2.Wireless Connectivity:
Supports 4G, NB-IoT, LoRa, LoRaWAN, and other IoT protocols for global connectivity. Low power consumption with a battery life of up to 6 years.*3.Remote Monitoring & Control:
Real-time data access via mobile App or web platform, with remote parameter configuration. Alarm triggers for anomalies with SMS/email notifications.4.Edge Computing:
Built-in edge computing chip for local data analysis, reducing cloud dependency. AI-driven predictive maintenance and energy efficiency optimization.1.Data Acquisition:
Built-in sensors collect real-time parameters (e.g., energy consumption, temperature).2.Data Processing:
Edge computing chip filters, calibrates, and analyzes raw data locally.3.Data Transmission:
Encrypted data is transmitted to the cloud or user platform via wireless protocols.4.Cloud & Application Layer:
Users access data via dashboards, generate reports, or send control commands.
|
project |
NB-loT |
4G Cat.1 |
LoRa |
LoRaWAN |
|
transmitting power |
23dBm |
23dBm |
≤20dBm |
≤20dBm |
|
quiescent current |
<11uA |
<11uA |
<11uA |
<11uA |
|
emission current |
<100mA |
<100mA |
<110mA |
<110mA |
|
receive current |
<100mA |
<100mA |
<15mA |
<15mA |
|
Wake up time |
1-24 hours (configurable) |
1-24 hours (configurable) |
Instant wake-up |
1-24 hours (configurable) |
|
working voltage |
2.7 ～ 3.6 V |
|||
|
work environment |
10%-90% relative humidity, no condensation |
|||
|
Fit the caliber |
DN15/20/25/32/40/50 |
|||
|
levels of protection |
IP67/IP68 |
|||
|
life length |
More than 6 years |
|||
