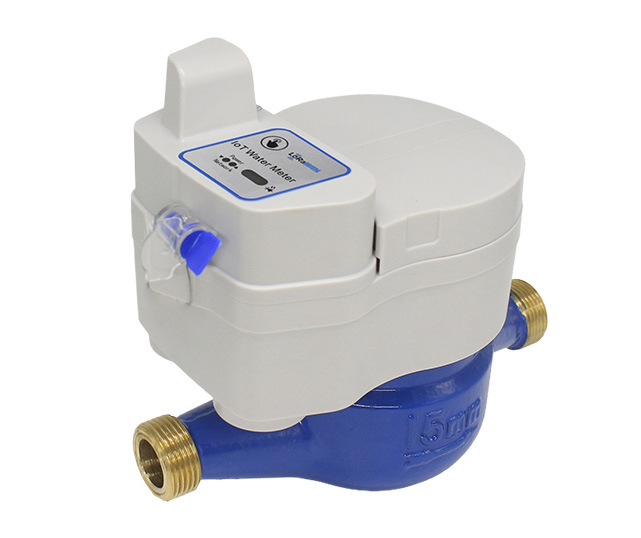

By adopting LoRaWAN low-power wide-area network technology, this solution enables digital transformation of water management systems, reducing manual inspection costs by 30% while improving water resource utilization efficiency.
1.Ultra-long range (15+ km)
2.10-year battery lifespan
3.Automatic remote meter reading
4.Cloud-based data dashboard
5.IP68 waterproof rating
1.Residential & Apartments
2.Hotels & Retail Stores
3.Schools & Public Facilities
4.Old Community Renovation
|
Project |
Parameter |
|||
|
Bore (DN) |
15mm |
20mm |
25mm |
|
|
Overload flow (Q4) |
3.125 m³/h |
5 m³/h |
7.875 m³/h |
|
|
Common flow (Q3) |
2.5 m³/h |
4 m³/h |
6.3 m³/h |
|
|
Boundary flow (Q2) |
0.05 m³/h |
0.08 m³/h |
0.126 m³/h |
|
|
Minimum flow (Q1) |
0.0313 m³/h |
0.05 m³/h |
0.0788 m³/h |
|
|
Measurement range (Q3/Q1) |
100 |
|||
|
Measurement unit |
0.1 m³ |
|||
|
Least count |
0.001 m³ |
|||
|
Full-scale reading |
99999 m³ |
|||
|
Working temperature |
Cold water meter: 0.1℃~30℃; hot water meter: 0.1℃~90℃ |
|||
|
Allow water pressure |
0.03 MPa～1MPa |
|||
|
Loss rating |
△p63 |
|||
|
Flow profile sensitivity level |
U10,D5 |
|||
|
Climate and mechanical environment safety level |
B class |
|||
|
Electromagnetic compatibility rating |
E1 |
|||
|
levels of protection |
IP68 |
|||
|
transmission parameter |
protocol |
Standard LoRaWAN communication protocol |
||
|
Working frequency band |
EU868 ,AU915,AS923E,U433(CN470) |
|||
|
transmitting power |
≤100mW |
|||
|
receiving sensitivity |
-136±1dBm |
|||
|
quiescent current |
＜4μA |
|||
|
Communication working current |
＜110mA |
|||
|
|
communication distance |
2-5Km (open distance) |
||
