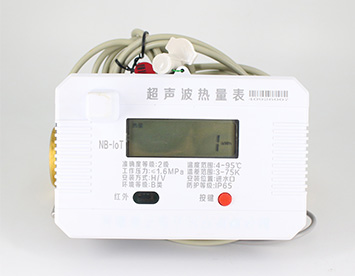

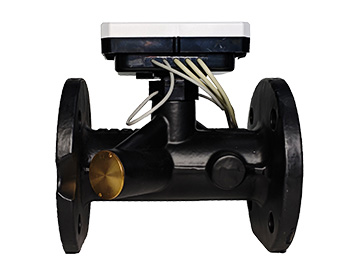

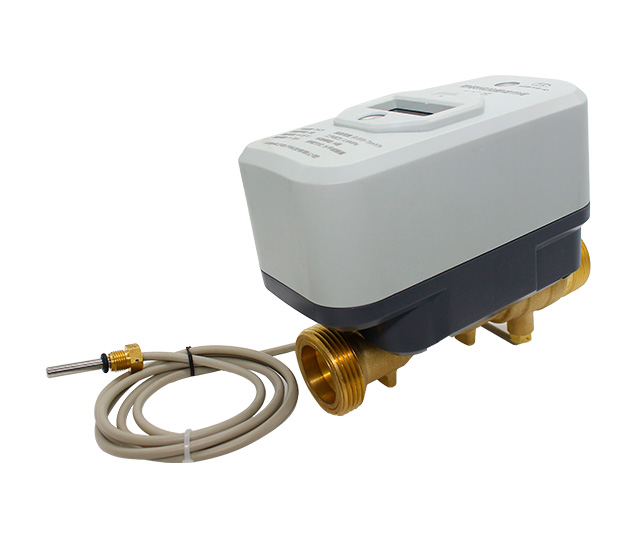

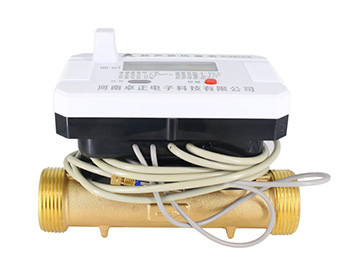

Ultrasonic Heat Meter, developed with advanced time-difference measurement technology, is designed for district heating, central air conditioning systems, and industrial thermal energy measurement. Featuring non-contact measurement with ultra-high accuracy (±1%), it supports bidirectional flow detection and ensures long-term stability in diverse global climate conditions.
1.Zero Mechanical Wear:
Ultrasonic sensing eliminates impeller wear issues.2.Smart Diagnostics:
Real-time detection of air bubbles and pipe deposits with alerts.3.Data Security:
Encrypted storage + Blockchain anti-tampering technology.4.Global Compliance:
Certified for EU MID, China CPA, and Middle East GSO standards.1.District Heating:
Accurate energy allocation for buildings/communities.2.Industrial Energy Saving:
Steam heat measurement for chemical/pharmaceutical plants.3.Green Buildings:
Sustainable energy management in LEED-certified projects.
|
mould
Number |
Nominal caliber |
maximumflow |
Common flow |
minimum flow |
|
DN(mm) |
Qs(m³/h) |
Qp(m³/h) |
Qi(m³/h) |
|
|
15 |
3.0 |
1.5 |
0.03 |
|
|
20 |
5.0 |
2.5 |
0.05 |
|
|
25 |
7.0 |
3.5 |
0.07 |
|
|
32 |
12.0 |
6.0 |
0.12 |
|
|
40 |
20.0 |
10.0 |
0.2 |
|
|
Heat (cold) carrier |
Water/mixed liquid |
|||
|
class of accuracy |
Level 2 |
|||
|
Ratio of range |
Qp/Qi=50 |
|||
|
pressure loss |
Less than 0.015Mpa |
|||
|
nominal pressure |
1.6Mpa |
|||
|
temperature sensor |
PT1000 Platinum resistance |
|||
|
Temperature measurement range |
4-95℃ |
|||
|
Range of temperature difference |
3k-75K |
|||
|
temperature resolution |
0.01℃ |
|||
|
Keying mode |
key |
|||
|
Environmental rating |
A class |
|||
|
levels of protection |
IP65 |
|||
|
Type of power supply |
3.6V lithium battery, service life of more than 6 years |
|||
|
communication mode |
RS485/M-BUS (default M-bus)/4-20mA GPRS communication /4G/NB-IOT |
|||
|
protocol |
Modbus/T188/Custom (default T188) |
|||
|
installation site |
Water supply/reclaimed water (default water supply) |
|||
|
way to install |
Horizontal or vertical |
|||
|
Temperature measuring accessories |
Temperature measuring ball valve, temperature measuring three-way |
|||
